XK15EDGKNM-3.81
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
Poles：2-24P
电气性能/Electrical Specification
额定电压：300V
ated voltage：300V
额定电流：8A
Rated current：8A
耐电压：1600V/ 1Min
Withstanding voltage：1600V/ 1Min
导线线径：28-16AWG (1.5MM²)
Wire range：28-16AWG (1.5MM²)
额定冲击电压：2.5KV
Rated impulse voltage: 2.5KV
机械性能/Mechanical Specification
环境温度：-40℃~+105℃
Temp range：-40℃~+105℃
剥线长度：8-9MM
Strip length：8-9MM
螺丝/扭矩：-
Screw/Torque：-
材质及电镀/Material and Plating
塑件：PA66.UL94V-0
Housing：PA66.UL94V-0
夹子：磷青铜，镀镍
Contact：Phosphor Bronze,Ni plated
簧片：不锈钢
Reed：Stainless steel
螺丝：M2.5,钢，镀锌
Screw：M2.5,Steel,Zinc plated

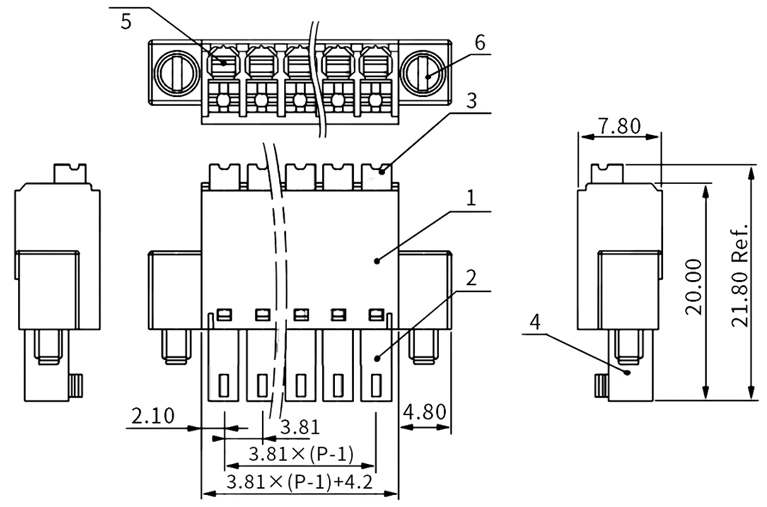

间距：3.81MM
Pitch：3.81MM
极数：2-24P
