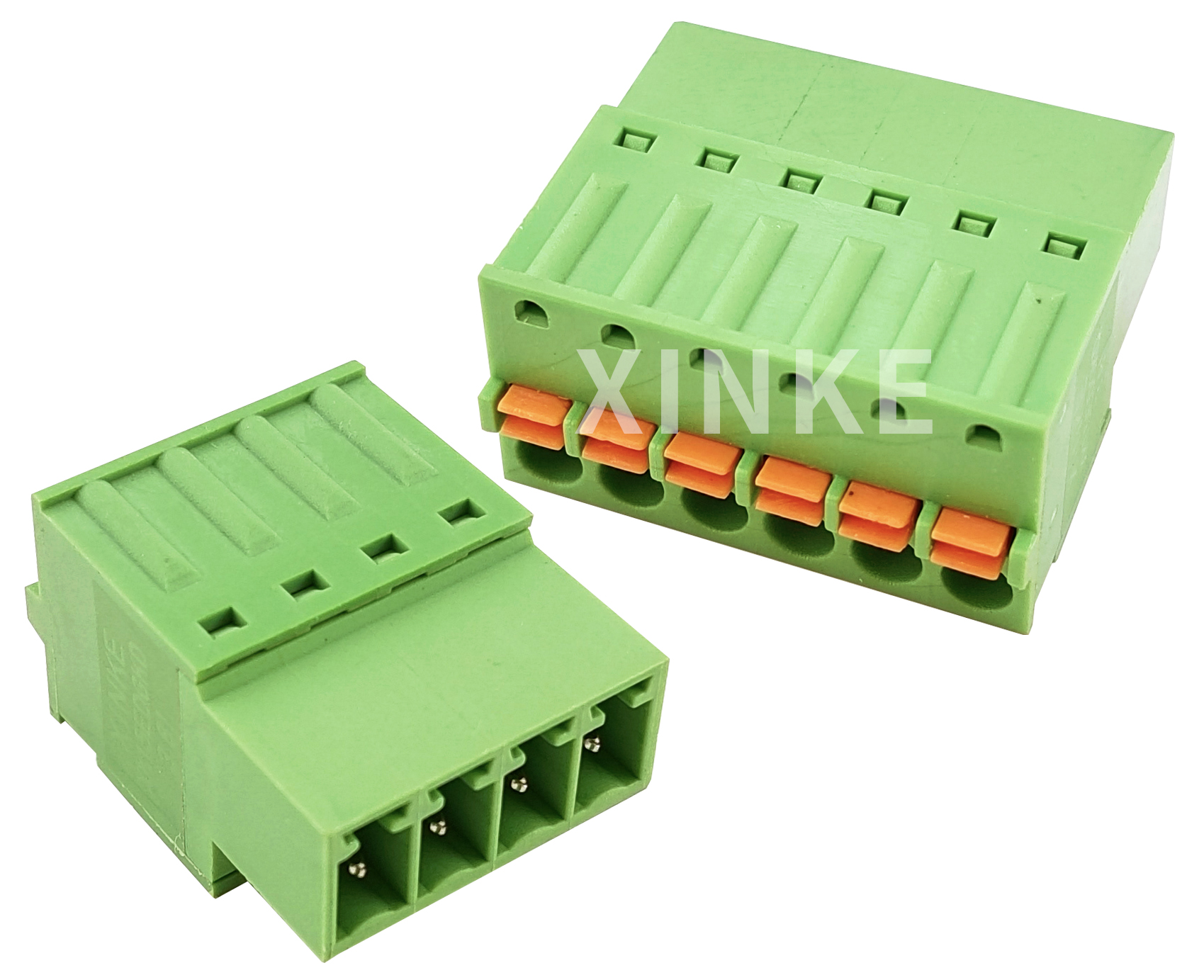

XK15EDGRKD-3.81
XK15EDGRKD-3.81
电气性能/Electrical Specification |
|
额定电压:300V |
ated voltage:300V |
额定电流:8A |
Rated current:8A |
耐电压:1600V/ 1Min |
Withstanding voltage:1600V/ 1Min |
导线线径:28-16AWG (1.5MM²) |
Wire range:28-16AWG (1.5MM²) |
额定冲击电压:2.5KV |
Rated impulse voltage: 2.5KV |
机械性能/Mechanical Specification |
|
环境温度:-40℃~+105℃ |
Temp range:-40℃~+105℃ |
剥线长度:8-9MM |
Strip length:8-9MM |
螺丝/扭矩:- |
Screw/Torque:- |
材质及电镀/Material and Plating |
|
塑件:PA66.UL94V-0 |
Housing:PA66.UL94V-0 |
夹子:磷青铜,镀镍 |
Contact:Phosphor Bronze,Ni plated |
焊针:黄铜,镀锡 |
Pin header:Brass,Tin plated |
簧片:不锈钢 |
Reed:Stainless steel |

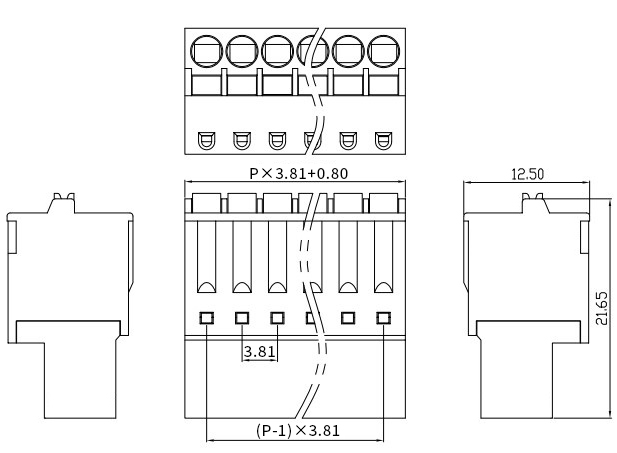

间距:3.81MM |
Pitch:3.81MM |
极数:2-24P |
Poles:2-24P |
