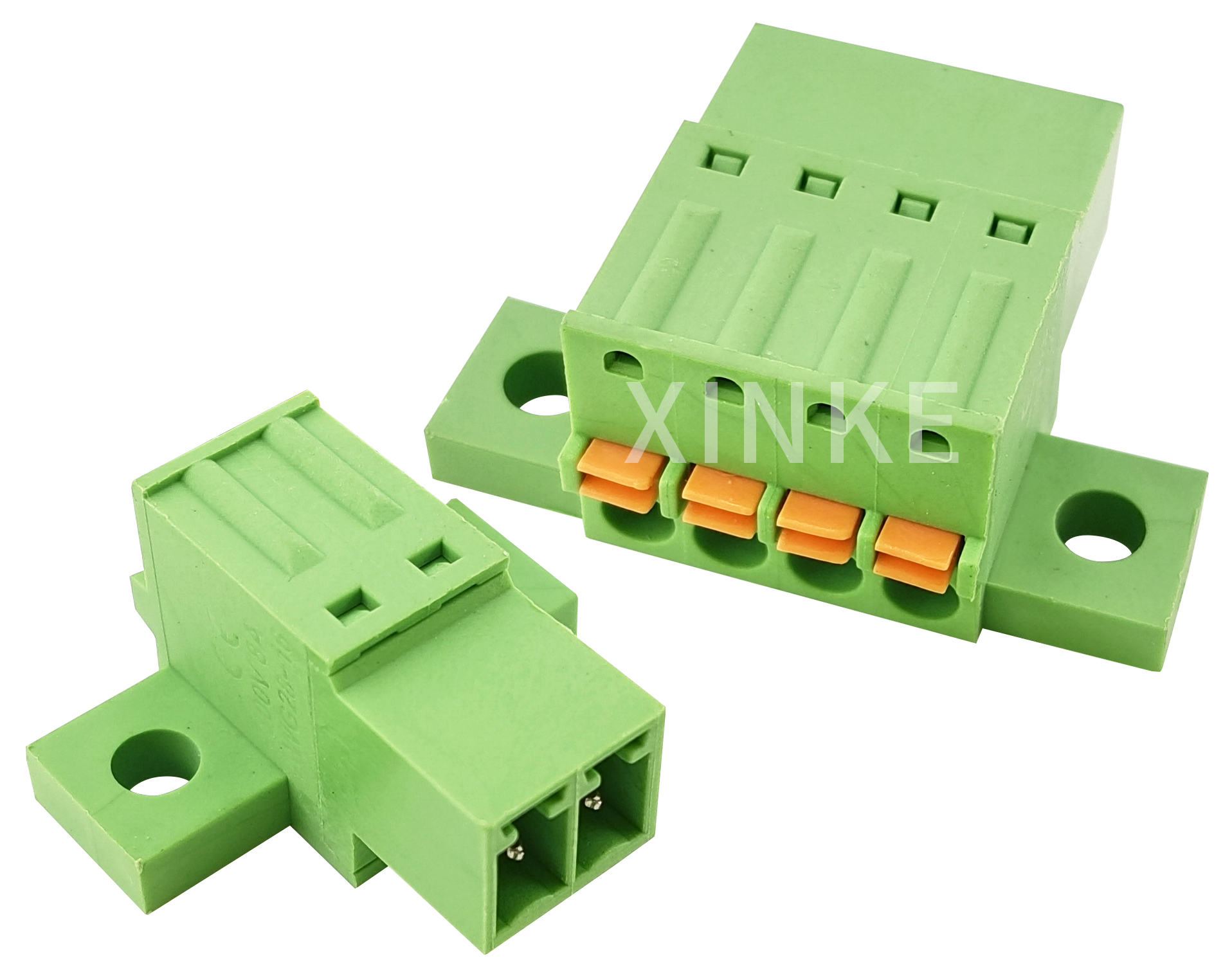

XK15EDGRKDS-3.81
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
电气性能/Electrical Specification |
|
|
额定电压：300V |
ated voltage：300V |
|
额定电流：8A |
Rated current：8A |
|
耐电压：1600V/ 1Min |
Withstanding voltage：1600V/ 1Min |
|
导线线径：28-16AWG (1.5MM²) |
Wire range：28-16AWG (1.5MM²) |
|
额定冲击电压：2.5KV |
Rated impulse voltage: 2.5KV |
|
机械性能/Mechanical Specification |
|
|
环境温度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剥线长度：8-9MM |
Strip length：8-9MM |
|
螺丝/扭矩：- |
Screw/Torque：- |
|
材质及电镀/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
夹子：磷青铜，镀镍 |
Contact：Phosphor Bronze,Ni plated |
|
焊针：黄铜，镀锡 |
Pin header：Brass,Tin plated |
|
簧片：不锈钢 |
Reed：Stainless steel |
|
间距：3.81MM |
Pitch：3.81MM |
|
极数：2-24P |
Poles：2-24P |
