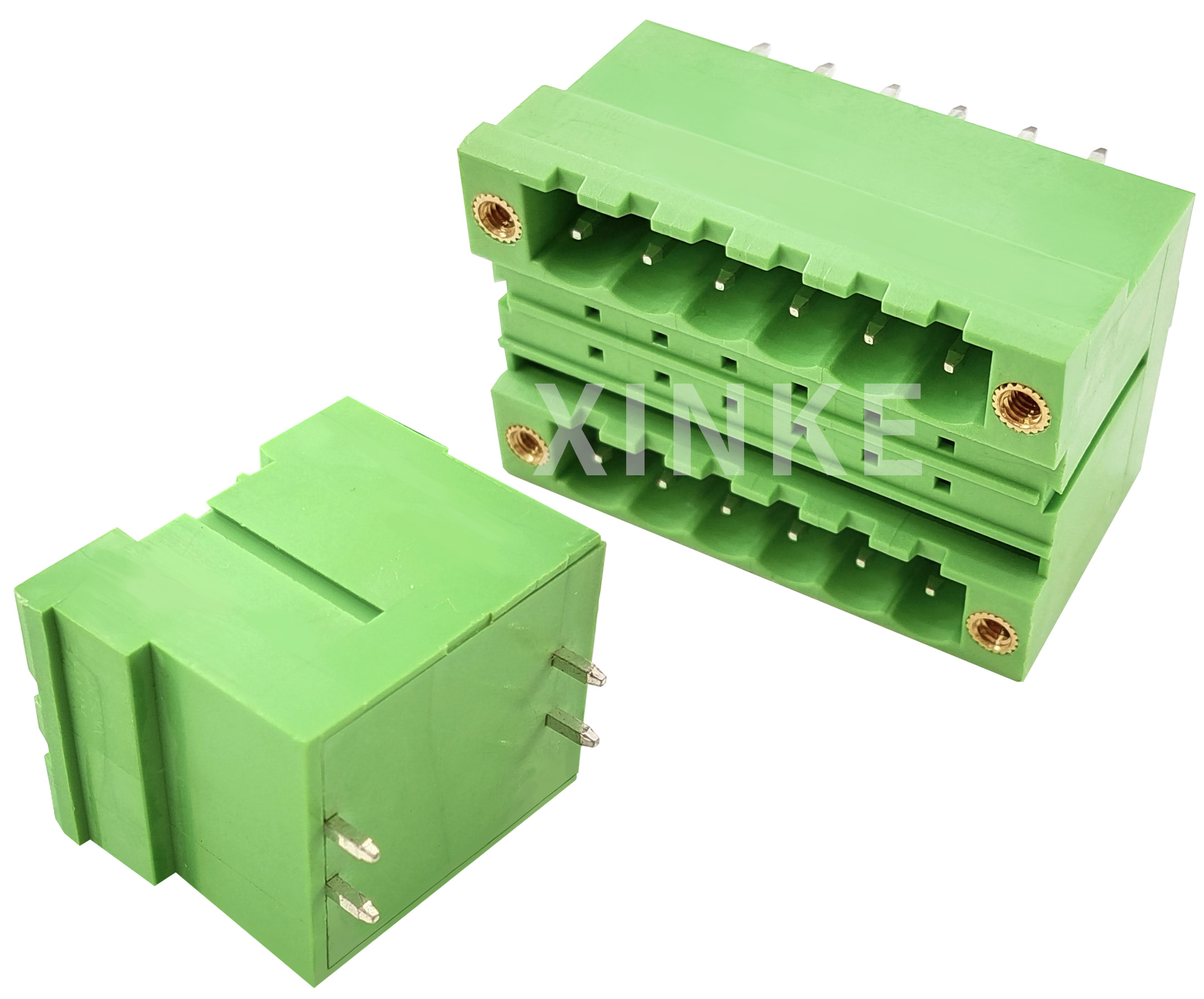

XK2EDGVHM-5.08
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
电气性能/Electrical Specification |
|
|
额定电压：300V |
ated voltage：300V |
|
额定电流：10A |
Rated current：10A |
|
耐电压：1600V/ 1Min |
Withstanding voltage：1600V/ 1Min |
|
导线线径：- |
Wire range：- |
|
额定冲击电压：4.0KV |
Rated impulse voltage: 4.0KV |
|
机械性能/Mechanical Specification |
|
|
环境温度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剥线长度：- |
Strip length：- |
|
螺丝/扭矩：- |
Screw/Torque：- |
|
材质及电镀/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
焊针：黄铜，镀锡 |
Pin header：Brass,Tin plated |
|
间距：5.08MM |
Pitch：5.08MM |
|
极数：2-24P |
Poles：2-24P |
