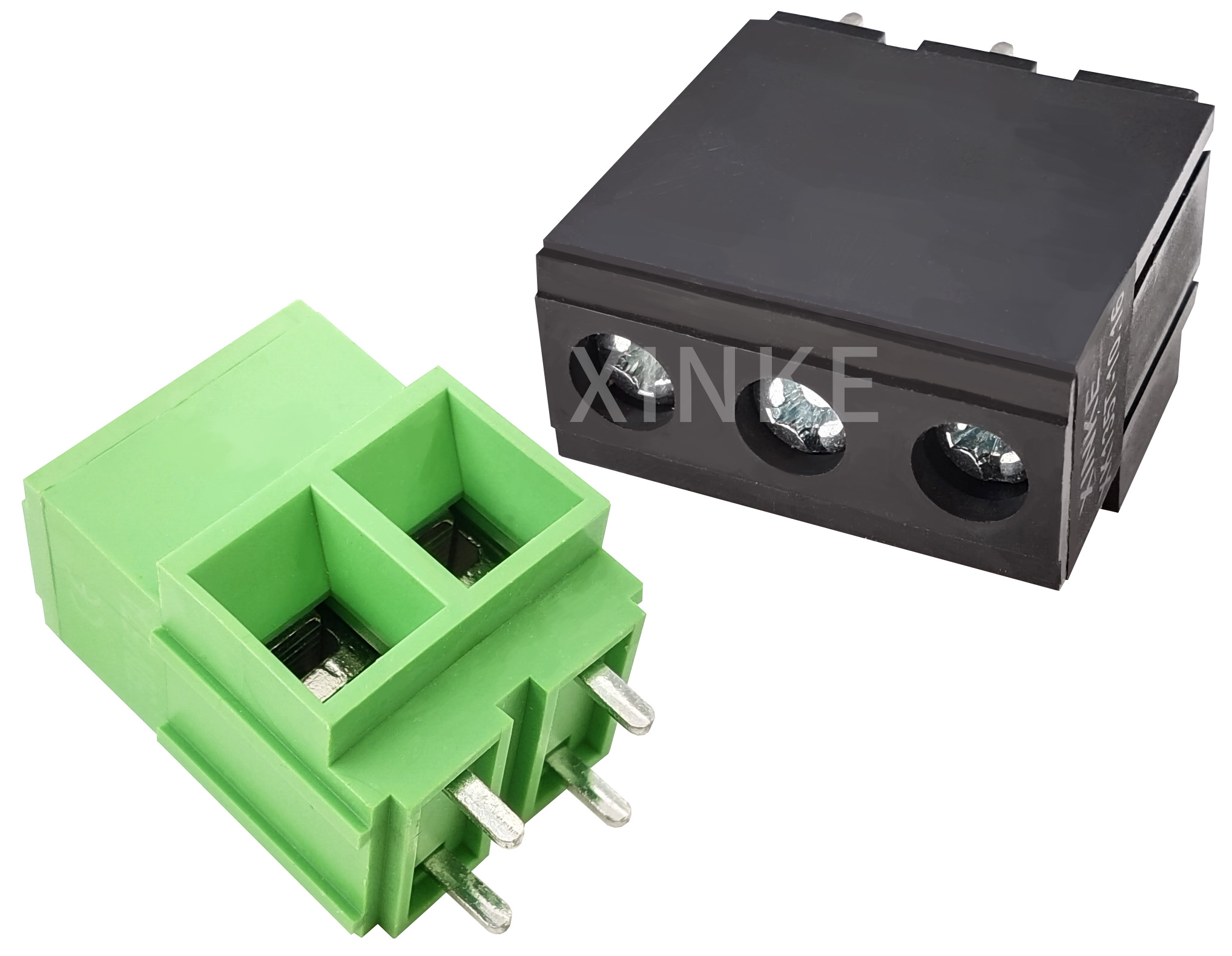

XK135T-10.16
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
电气性能/Electrical Specification |
|
|
额定电压：720V |
ated voltage：750V |
|
额定电流：57A |
Rated current：57A |
|
耐电压：1600V/ 1Min |
Withstanding voltage：1600V/ 1Min |
|
导线线径：26-6AWG (10.0MM²) |
Wire range：26-6AWG (10.0MM²) |
|
额定冲击电压：8.0KV |
Rated impulse voltage: 8.0KV |
|
机械性能/Mechanical Specification |
|
|
环境温度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剥线长度：10.0MM |
Strip length：10.0MM |
|
螺丝/扭矩：M4.0/1.2N.M |
Screw/Torque：M4.0/1.2N.M |
|
材质及电镀/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
焊针：黄铜，镀锡 |
Pin header：Brass,Tin plated |
|
方块：黄铜，镀镍 |
Wire cage：Brass,Ni plated |
|
螺丝：M4.0,钢,镀锌 |
Screw：M4.0,Steel,Zinc plated |
|
间距：10.16MM |
Pitch：10.16MM |
|
极数：2-XXP |
Poles：2-XXP |
