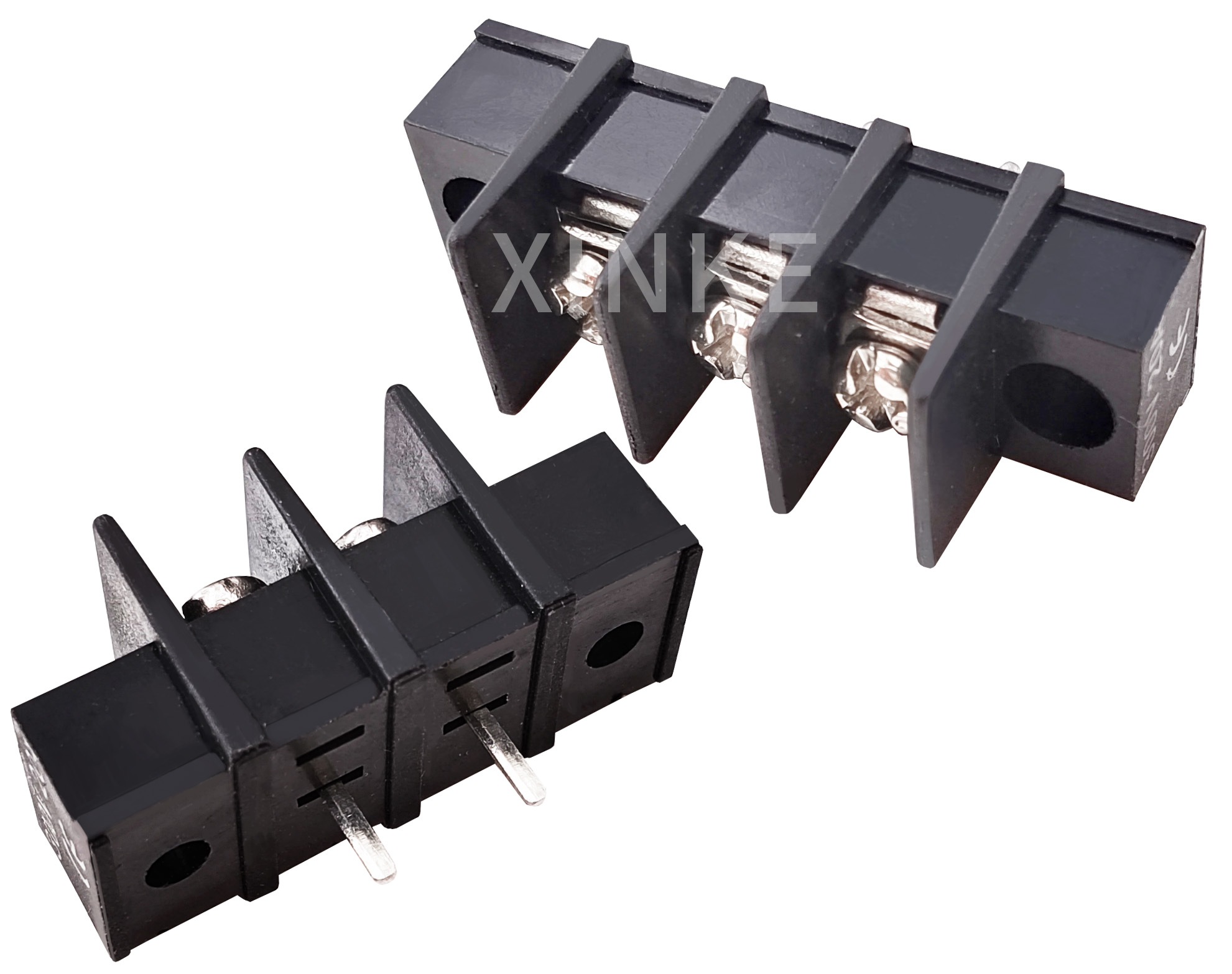

XK25CM-7.62
Cixi Xinke Electronic Technology Co., LtdA manufacturer integrating design, production and sales
+86-15821621268
Popular keywords：
Electric fan motor
Product Details
|
电气性能/Electrical Specification |
|
|
额定电压：300V |
ated voltage：300V |
|
额定电流：20A |
Rated current：20A |
|
耐电压：2000V/ 1Min |
Withstanding voltage：2000V/ 1Min |
|
导线线径：22-12AWG (2.5MM²) |
Wire range：22-12AWG (2.5MM²) |
|
额定冲击电压：- |
Rated impulse voltage: - |
|
机械性能/Mechanical Specification |
|
|
环境温度：-40℃~+105℃ |
Temp range：-40℃~+105℃ |
|
剥线长度：- |
Strip length：- |
|
螺丝/扭矩：M3.0/0.8N.M |
Screw/Torque：M3.0/0.8N.M |
|
材质及电镀/Material and Plating |
|
|
塑件：PA66.UL94V-0 |
Housing：PA66.UL94V-0 |
|
焊针：黄铜，镀锡 |
Pin header：Brass,Tin plated |
|
螺丝：M3.0,钢,镀锌 |
Screw：M3.0,Steel,Zinc plated |
|

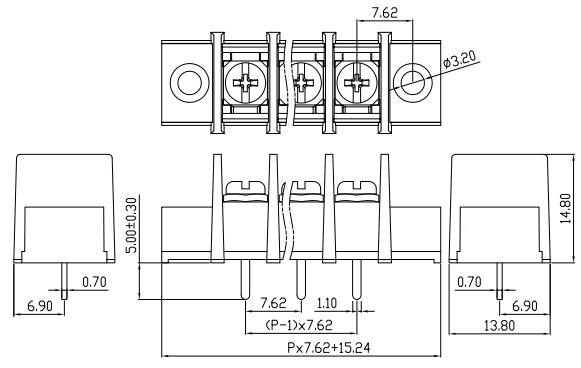

间距：7.62MM |
Pitch：7.62MM |
|
极数：2-12P |
Poles：2-12P |
